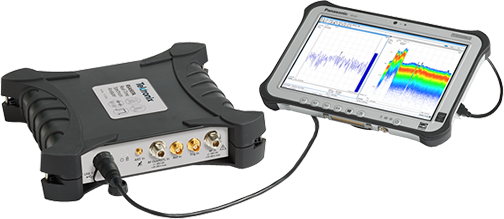

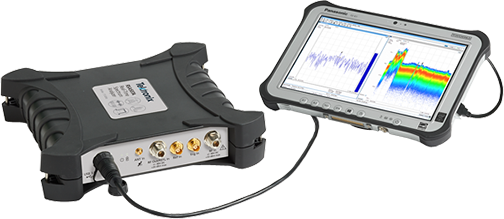

RSA500 Series Real Time Spectrum Analyzers
Find signals of interest and take the necessary actions to resolve issues with industries best ruggedized, portable USB Real-time Spectrum Analyzer, packed with features for your most common tasks out in the field.
See all spectrum / signal analyzers »
Highlights:
- Enable precise, real-time measurements with the RSA500 spectrum analyzer packaged in a portable, rugged form factor with advanced spectrum analysis capabilities.
- Quickly capture VLF to Ku signals of interest from 9 kHz to 18.0 GHz with 40 MHz bandwidth capture.
9 kHz to 18 GHz
40 MHz
-160 dBm to +20 dBm
Performance with no compromises.
The RSA500 provides performance to match conventional mid-range spectrum analyzers on the market. With real-time sweeps and a 4x faster scanning capability compared to other spectrum analyzers, you won’t miss signals you need to see and complete tasks faster. No compromises for even your toughest challenges.
Powerful and intuitive. Measurement insight at your fingertips.
The RSA500 is powered by SignalVu® software – the same software used on the full-line of Tektronix Real-time Spectrum Analyzers. Delivering unlimited access to advanced measurement and analysis capabilities that you can save, customize or share with peers. There are 26 add-on packages that cover general purpose modulation analysis, pulsed signal analysis, Bluetooth 5, and commercial wireless signal analysis.
Simplify your time in the field
With a built-in tracking generator for RF component test and GPS to geo-locate and map signals, the RSA500 makes field test a lot easier. Application-optimized software options for vector signal analysis, pulsed measurements, EMI/EMC pre-compliance testing, RADHAZ detection and more, make signal analysis a breeze.
See more with proprietary DPX® technology.
Discover the most difficult, hard-to-find problems with the powerful real-time architecture of the RSA Series. With the advanced DPX® technology, you can see RF characteristics that are practically invisible to a conventional spectrum analyzer..
| Model | Frequency Range | Real-Time Bandwidth | Minimum Event Duration for 100% POI | Weight | SFDR (typical) |
|---|---|---|---|---|---|
| RSA503A | 9 kHz-3.0 GHz | 40 MHz |
15 μs |
2.99 kg (6.6 lb) with battery |
70 dBc |
| RSA507A | 9 kHz-7.5 GHz | 40 MHz |
15 μs |
2.99 kg (6.6 lb) with battery |
70 dBc |
| RSA513A |
9 kHz-13.6 GHz |
40 MHz |
15 μs |
3.85 kg (8.5 pounds) with battery |
70 dBc |
| RSA518A |
9 kHz-18.0 GHz |
40 MHz |
15 μs |
3.85 kg (8.5 pounds) with battery |
70 dBc |
