DC Power Supply
Matching the DC Power Supplies to the Application
DC power supplies are used for a wide range of applications from training the next generation of electrical engineers to developing breakthrough ultra-low power, wearable products. Whether you need a DC power supply that provides basic power sourcing or one that pushes the limits of performance by delivering thousands of volts, choosing the appropriate variable bench power supply is critical to obtaining successful test results in teaching, research, design, and manufacturing.
How to Choose the Best DC Power Supply
The most common selection criteria are:
- Number of output channels (single or multi output)
- Output voltage, current, and power
- Setting resolution and accuracy
- Ripple and noise
- Features and programmability
- Advanced features like current measurement with nanoamp resolution, sequencing, analog inputs, digital I/O, and programming features
Keithley DC Power Supplies
Series 2230 High Power 3 Output DC Power Supplies
- 195 W and 375 W versions
- 6 A or 60 V per output
- Remote sensing on all outputs
- Three-channel models
- Low noise
- Programmable
Series 2280S High Precision Bench Power Supply
- 192W with up to 6A
- 6 ½-digit, 10nA current measurement resolution
- Displays plots of voltage and current
- Programmable
- Designed for benchtop and automated testing of power conversion devices and IoT devices
- TFT LCD display to monitor current and voltages

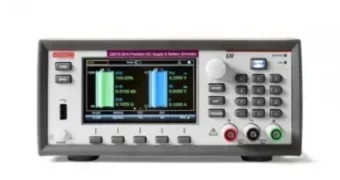

Series 2281 Dynamic Model Battery Simulator
- Used to model and simulate any type of battery
- Unique display shows battery state
- Precision power supply mode
- TFT LCD display to monitor current and voltages
Series 2220/2230/2231 Multiple Output DC Power Supplies
- Two or three independent outputs
- All outputs displayed simultaneously
- Remote sensing on all channels
- Low noise
- Programmable
Series 2260B 360W/720W/1080 DC Power Supplies
- Power up to 1080W
- Outputs up to 800V and 100A
- Analog input
- Single channel
- Wide range
- Programmable
- Used in automated test equipment
Series 2300 Battery Simulating DC Power Supplies
- Single and dual output models
- Each output can source or sink
- Programmable output resistance
- Low noise
Series 2200 USB/GPIB DC Power Supplies
- 20V to 72V and 1.2A to 5A outputs
- 1mV/0.1mA resolution
- Displays settings and outputs
Series 2290 High Voltage DC Power Supplies
- 5kV and 10KV output models
- 1µA current resolution
- Safety interlock
