Keithley 2400 Graphical Touchscreen Series SMU

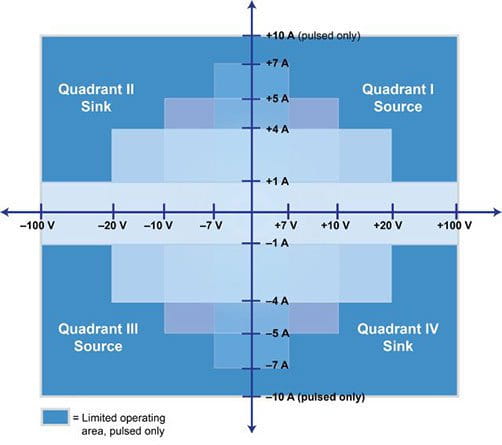

Keithley 2400 Graphical Series SMU instruments offer four-quadrant precision voltage and current source/load coupled with measurement now on an intuitive touchscreen user interface. These instruments can simultaneously source and measure current from 10 fA to 10 A pulse and/or voltage from 100 nV to 1100 V for 1000 W pulse and 100 W DC total power, allowing users to Touch, Test, Invent®.
100 W DC
1000 W Pulse
10n V to 1100 V,
10 fA to 10 A
0.012%
6.5 digits
1 MS/s sampling
100 kS/s to buffer
A modern curve tracer solution

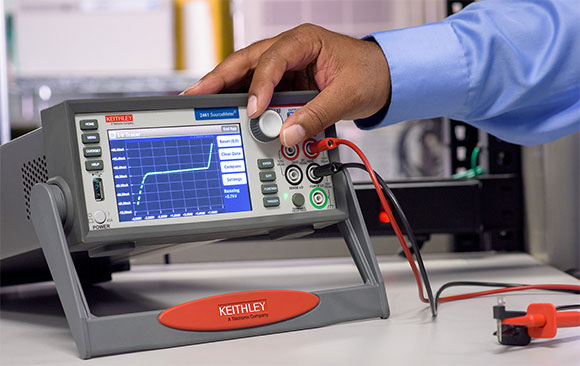

Install I-V Tracer Software to your 2400 Series Graphical SMU and create a functional replacement to traditional curve tracers like the Tektronix 576 or 370. Quickly trace out two-terminal device characteristics without configuring sweeps or connecting to other software.
Making the big power switch
Demand for more efficient high-voltage semiconductors in 5G, automotive, and alternative energy markets is driving increasingly complex testing and research into new technologies like SiC and GaN. Your testing equipment will need to evolve to keep up.

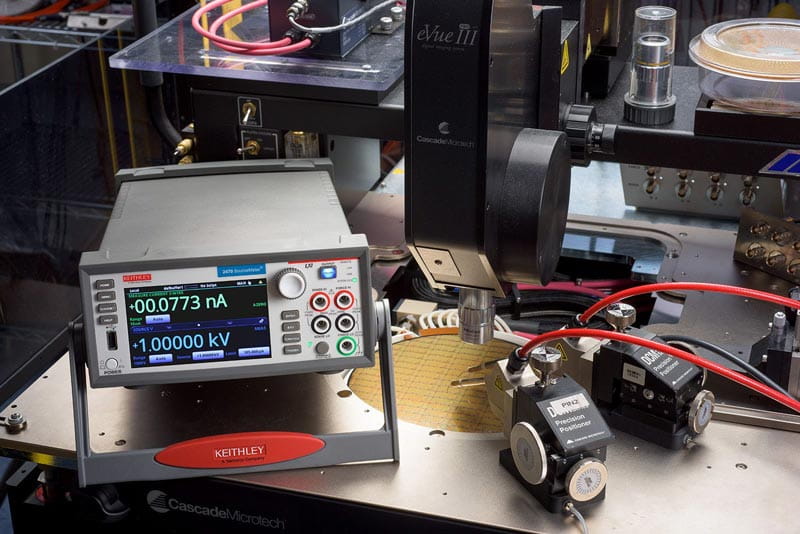

The 2470 SMU adds capabilities in measurements like breakdown voltage, leakage current, isolation testing, hi-pot and dielectric withstanding tests to get you to insight faster.
Make measurements at a whole new level
SMU instruments capture more-detailed device behavior and can characterize the device in extended ranges, so you can understand your device better, enhance its quality and improve its performance.
Highlights
- 6½-digit resolution precision source and measure
- 1 MSamples/s digitized measurement speed
- Current: 10 nA to 7 A DC, 10 A Pulse
- Voltage: 200 mV to 200 V
- Power: Up to 100 W DC to 1000 W Pulse
Intuitive UI. Smart and fast.

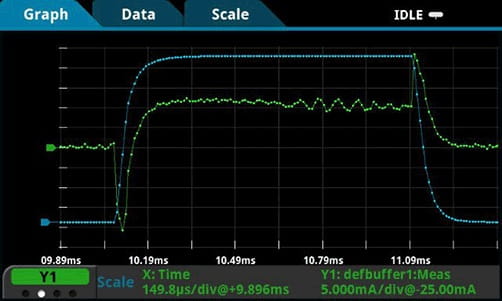

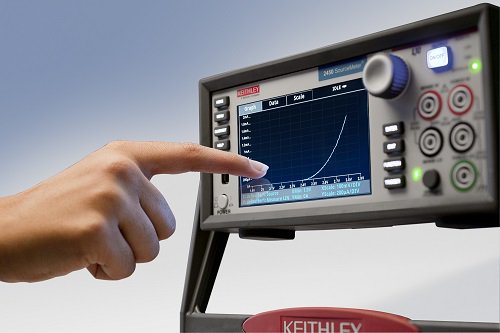

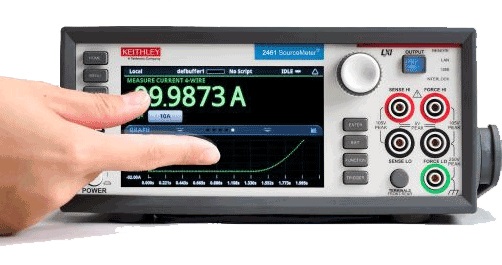

Measure, see and discover more on the intuitive, multi-touch user interface – from raw readings to histograms to time-based and voltage/current-based waveforms—and get to your answers more quickly.
Highlights
- Five-inch touchscreen with carefully-designed color combination and screen layout
- Easy navigation and one-level-deep menu and settings
- 27.5 million data memory with time stamps all viewable on the instrument
Unmatched versatility and return on investment.
SMU instruments bring versatility to a new level for today’s applications and tomorrow’s innovation. Configure yours as a precision power supply, 6½-digit DMM, current source, voltage source, picoammeter, electronic load and more.
Learn more. Gain more.
Source Measure Unit Tutorial Learning Center brings together a wealth of information on Keithley SMUs and other products in an all-in-one, convenient location. We provide links to a wide variety of content related to the applications and industries we serve.
Cut Costs and Protect Your Investment
Keithley Care plans provide fast, high-quality services at a fraction of the cost of on-demand service events. You are one click or phone call away from obtaining repair coverage – no quotes, purchase orders, or approval delays.

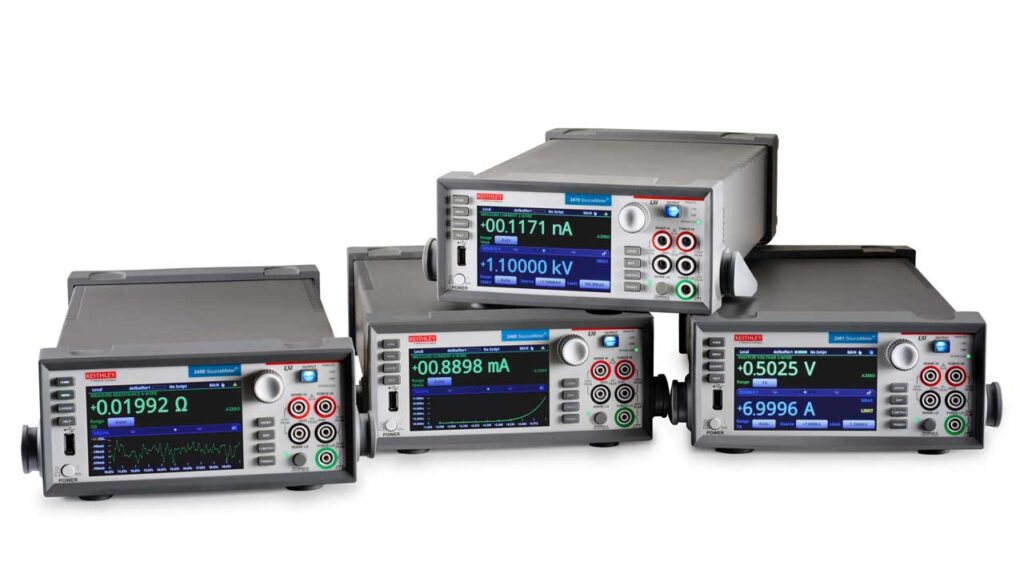

| Model | Touchscreen | Channels | Max Current Source/Measure Range | Max Voltage Source/Measure Range | Measurement Resolution (Current / Voltage) | Power |
|---|---|---|---|---|---|---|
| 2450 | Yes | 1 | 1A | 200V | 10fA / 10nV | 20 W |
| 2460 | Yes | 1 | 7A | 100V | 1pA / 100nV | 100 W |
| 2461 | Yes | 1 | 10A | 100V | 1pA / 100nV | 1000W |
| 2470 |
Yes |
1 |
1A |
1100V |
10fA / 100nV |
20 W |
