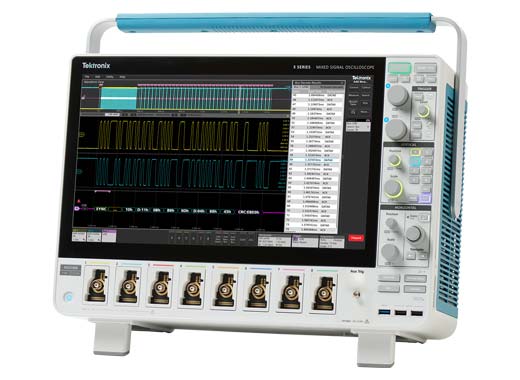

5 Series B MSO Mixed Signal Oscilloscope
5 Series B MSO Mixed Signal Oscilloscope
Get a complete view of your design with high-fidelity waveforms, insightful measurements, unique spectrum analysis, and flexible probing. Experience the intuitive user interface appreciated by engineers everywhere.
Up to 2 GHz
Up to 500 M
4 or 6 or 8
12 bits
Get to know the 5 Series B

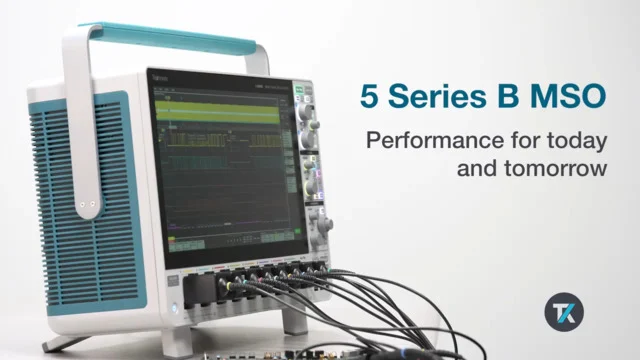

- Performance for today and tomorrow
- Intuitive controls
- Insightful measurements and analysis
- Multi-channel spectrum analysis

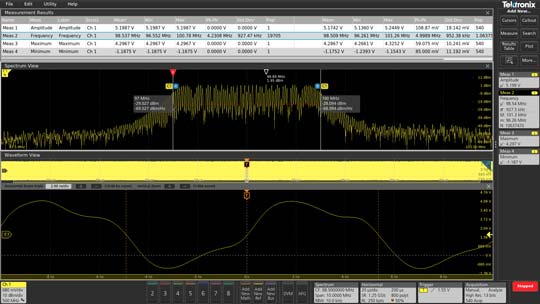

Insightful measurements
See signal details with high-resolution 12-bit analog-to-digital converters. Change your point of view whenever you wish with multi-channel spectrum analysis, measurement statistics, tables and trend plots.
- 12-bit resolution at 1.25 GHz; 16-bit resolution at 50 MHz
- Built-in DDCs enable multi-channel, synchronized spectrum analysis
- Results tables, measurement statistics, histograms, and trend plot views

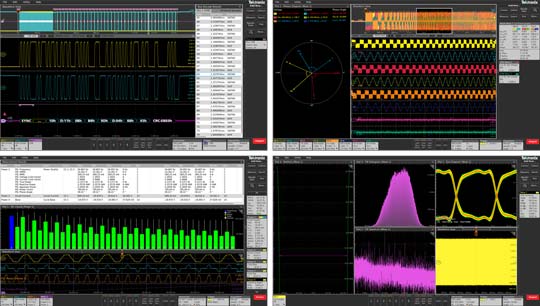

Advanced solutions
The 5 Series adapts to suit your needs with a wide range of application-specific measurements. Add advanced analysis packages individually or install application bundles to address more diverse workloads.
- Support for over 25 serial protocols covering the most common interfaces
- Advanced single-phase and three-phase power analysis packages
- Measurement tools for signal integrity and power integrity
- Optional Windows® operating system lets you run PC software

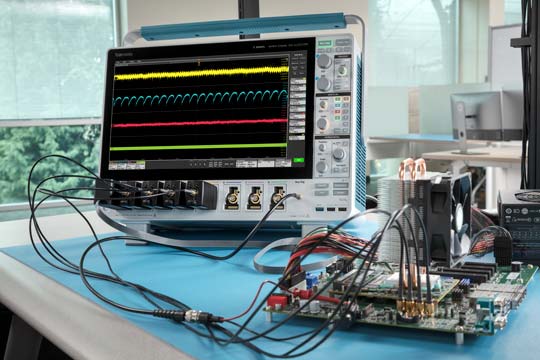

More ways to see more signals
Versatile inputs and advanced probing technology let you see more.
- Up to 8 FlexChannel™ inputs for up to 8 analog or 64 digital signals, plus an external trigger input
- Includes 500 MHz or 1 GHz probes with just 3.9 pF input capacitance
- TekVPI probe interface supports a wide range of active, differential, isolated and current probes

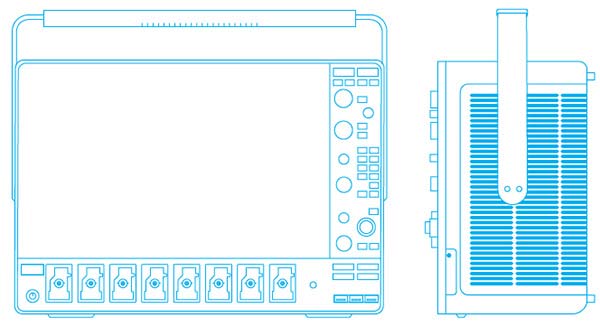

Specification Overview
Input Channels
4,6 or 8 FlexChannel inputs.
Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP0581 probe
NEW Auxiliary trigger input
Bandwidth 1
350 MHz, 500 MHz, 1 GHz, 2 GHz
Sample Rate
6.25 GS/s
Record Length 1
Up to 500 Mpoints on all analog/digital channels
Internal Data Storage 1
NEW 250 GB removable SSD
Protocol Decode 1
Over 25 protocols available
Signal Generator 1
13 standard waveform types, plus arbitrary
NEW 100 MHz maximum frequency
Digital Voltmeter 2
4 digit
Trigger Frequency Counter 2
8 digit
Display
15.6-inch (385 mm)
TFT color HD (1920 x 1080) resolution capacitive (multi-touch) touchscreen
Work and collaborate almost anywhere
Capture data outside the lab and collaborate easily with engineers on the next bench or in the next time-zone.
- Using just a web browser, connect and control the scope within your own network
- Analyze data on or off the scope with TekScope™ PC analysis software that works just like the scope
- Optional TekDrive one-button cloud storage facilitates record-keeping and collaboration
| Model | Analog Bandwidth | Sample Rate | Record Length | Analog Channels | Digital Channels | Function Generator Output |
|---|---|---|---|---|---|---|
| MSO54B | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 4 | Up to 32 (optional) |
1 (optional) |
| MSO56B | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 6 | Up to 48 (optional) |
1 (optional) |
| MSO58B | 350 MHz - 2 GHz | 6.25 GS/s | 62.5 M - 500 M | 8 | Up to 64 (optional) |
1 (optional) |
