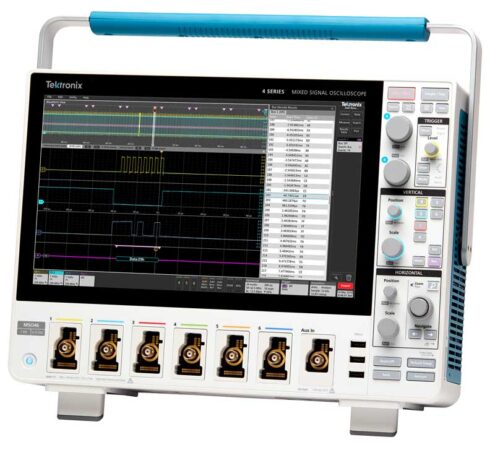

4 Series MSO Mixed Signal Oscilloscope

With the largest display and highest available channel count in its class, the 4 Series offers unprecedented insight in a bench-friendly package. And its made-for-touch user interface works exactly as you’d expect.

BANDWIDTH

Up to1.5GHz

RECORD LENGTH

Up to62.5M

ANALOG CHANNELS

4or6

VERTICAL RESOLUTION

12bits

Biggest display in its class and award-winning user interface

With the same made-for-touch user interface technology as the award-winning 5 Series and the largest and highest resolution display in its class, the 4 Series MSO sets a new expectation of how a scope should work.

  • 13.3-inch HD display
  • 6.1-inch (15.5 cm) deep bench-friendly footprint

Outstanding details and up to 6 super-flexible channels

  • Any channel can show a waveform, spectrum, or both
  • Any input can be used to view eight digital channels by connecting a logic probe
  • Outstanding detail and accurate measurements on all channels
    • 12-bit vertical resolution (16-bit in high res mode)
    • 6.25 GS/s on all analog and digital channels
    • Up to 62.5 Mpoints record length

Specs at a glance

Input Channels

  • 4 or 6 FlexChannel inputs
  • Each FlexChannel provides 1 analog signal input or 8 digital logic inputs with TLP058 probe

Bandwidth1

  • 200 MHz, 350 MHz, 500 MHz, 1 GHz or 1.5 GHz

Sample Rate

  • 6.25 GS/s on all analog/digital channels

Record Length

  • 31.25 or 62.5 Mpoints

Vertical Resolution

  • 12 bits
  • Up to 16 bits in High Res mode

Signal Generation1

  • Arbitrary, Sine, Square, Pulse, Ramp, Triangle, DC Level, Gaussian, Lorentz, Exponential Rise/Fall, Sin(x)/x, Random Noise, Haversine, Cardiac

Digital Voltmeter2

  • 4-digit AC RMS, DC
  • DC+AC RMS voltage

Trigger Frequency Counter2

  • 8-digit

Advanced Analysis

  • Spectrum View Mixed Domain Analysis
  • Automated Power Measurements1
  • 3-Phase Power Measurements1

Protocol Support3

  • 10BASE-T, 100BASE-TX
  • CAN, CAN FD, LIN, FlexRay
  • I2C, SPI
  • MIL-STD-1553, ARINC 429
  • RS-232, RS-422, RS-485, UART
  • SPMI
  • SVID
  • USB 2.0 LS, FS, HS

Display

  • 13.3-inch (338 mm)
  • HD color (1920 x 1080) capacitive touchscreen

Dimensions (H x W x D)

  • 287 mm x 405 mm x 155 mm
  • (11.3 in x 15.9 in x 6.1 in)

Weight

  • 16 lbs (7.3 kg)

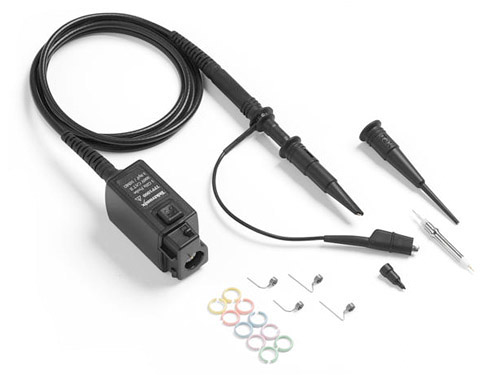

Industry-Leading Probes

Accurate measurements start with great probes. Every 4 Series comes with the best passive probes in the industry, with loading of just 3.9 pF and up to 1 GHz bandwidth. The TPP Series probes will be your go-to probes for everyday use.

Highlights

  • TPP Series probes included standard. One per analog channel.
  • Industry-best capacitive probe loading of 3.9 pF
  • 250 MHz, 500 MHz or 1 GHz probe bandwidth depending on instrument bandwidth

Versatile and upgradeable

Get all the debug tools you need right away or add them when you need them – without having to send it back.

  • Bandwidth up to 1.5 GHz
  • Record length up to 62.5 Mpoints
  • Digital channels: each TLP058 logic probe provides 8 digital channels
  • DVM/Freq Counter (free with registration)
  • Arbitrary/Function Generator
  • Advanced Analysis
    • Serial bus decoding and triggering
    • Automated power measurements
Model Analog Bandwidth Analog Channels Digital Channels Sample Rate Record Length
MSO44

200 MHz to 1.5 GHz

4

Up to 32 (optional)

6.25 GS/s

31.25 M to 62.5 M
MSO46

200 MHz to 1.5 GHz

6

Up to 48 (optional)

6.25 GS/s

31.25 M to 62.5 M
